Metal Stamping Parts

(点击图片可放大)

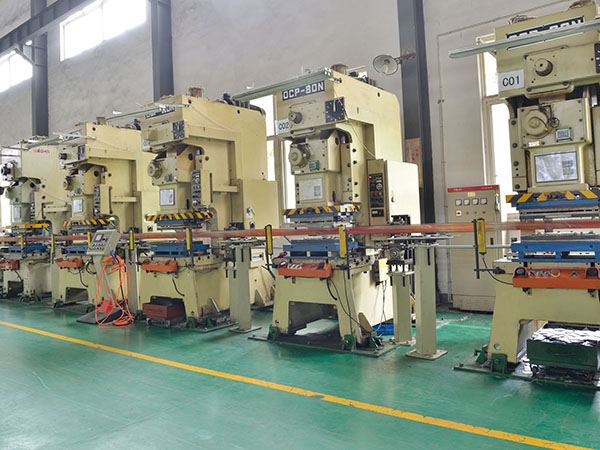

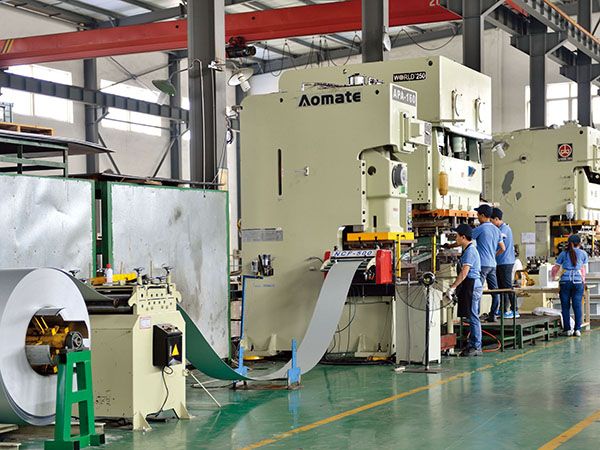

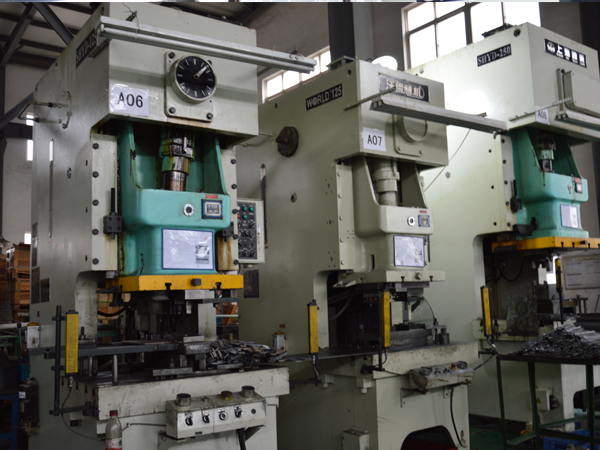

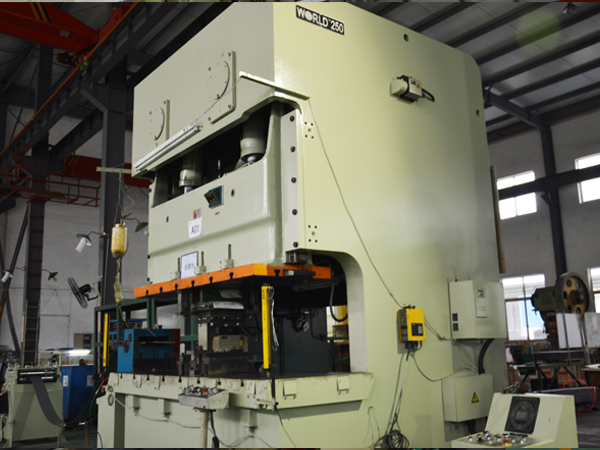

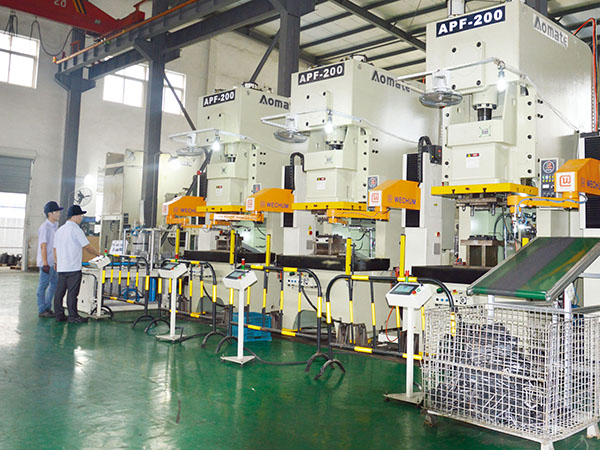

Metal stamping is at the heart of Hifly Tool’s business. We have worked with clients to create specialized product applications in a wide variety of fields, including the automotive, telecommunication, electronics and office equipment industries in many European and American countries. Regardless of the size, shape, or complexity of your stamping, we can meet your needs accurately and consistently. Our metal stamping processes are appropriate for metal parts ranging from 0.5mm to 10.0 mm thickness, can hold a 0.05mm tolerance. We have 25 press machines featuring 45-ton, 80-ton, 110-ton, 125-ton, 350-ton, 400-ton press capacity, among which 12 power presses connected with feeding devices, 5 power presses working together with a transfer line. Hifly has established an independent metal stamping company, rather than a general job shop. Our expertise extends to assisting customers with the initial design concept, including the choice of raw material. Where possible, we like to be involved before a part is signed off so that we can assist in the design and product layout. In this way, we can attempt to identify “cost-down” solutions before a die is built.

骏腾模具

骏腾模具
骏腾模具
骏腾模具
骏腾模具

骏腾模具

骏腾模具
骏腾模具
骏腾模具


Project Portfolios - Examples of Our Work:

Base plate for PV mounting systemAdjustable hook for PV mounting system
Valley baseplate for PV mounting systemCompliant rockit clip for PV mounting system
Stub retainer plate for PV mounting systemDouble button spring for PV mounting system
Rail bracket for car sunroofTrunk lock for Buick
Moving contact in power distribution closetNeutral phase adapter top feed in power distribution closet

Custom Metal Stamping Capabilities:

General Capabilities
Contract Manufacturing
Production Run
Custom Packaging
Assembling
Stamping Equipment Capabilities
25 Punch Presses
Press Ratings: 45 to 400 tons
Press Stroke: Adjustable from 60 to 300
Maximum Press Speed: 80 times/minute
Maximum Press Bed Length: 2700mm

Maximum Press Bed Width: 1100 mm
Stock Width Maximum: 600mm
Stock Thickness Capabilities: 0.5 to 10mm
Part Tolerance: in 0.01mm
Industry Standards TS16949 Quality management systems-Particular requirements for the application of ISO 9001:2000 for automotive production and relevant service part organizations
Production Method
Punch Press
Transfer Line
Progressive Die
Materials
Non Ferrous
Ferrous
Aluminum
Brass and copper
Stamping Products
Baseplate
Double button spring
Valley baseplate
Closure used with cast-in loop
Shredder Cutter
Trunk lock
Adjustable mighty Hook
Compliant rockit clip
Baseplate
Spring in terminal boxes
Brass parts used in NHP power distribution cabinet
Rail bracket for car sunroof
Industry focus
Solar energy
Construction
Telecommunication
Automobile
Office equipment
Electronic equipment
Intended Application
Photovoltaic mounting system
Cabinet
Shredder
Switch
Automobile
Concrete lifting system
Terminal box
